Access/Start System Antenna in Luggage Compartment -R137-, REMOVING AND INSTALLING: Removing
WARNING: This page is about a different car, the 2024 Audi SQ8, 2024 Audi Q8, 2023 Audi SQ8, and 2023 Audi Q8. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the lock carrier trim panel. Refer to LOCK CARRIER TRIM PANEL, REMOVING AND INSTALLING .

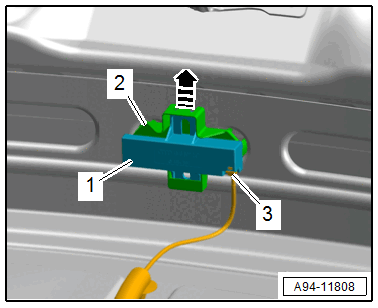

-- Release the locking mechanism -arrow- and remove the antenna -1- from the mount -2-.
-- Release and disconnect the connector -3-.
