Rear Lid Lamps -W51- / -W101-, Removing And Installing: Removing

WARNING: This page is about a different car, the 2024 Audi SQ8, 2024 Audi Q8, 2023 Audi SQ8, and 2023 Audi Q8. However, it is still accessible from the selected car via links, so may be relevant.

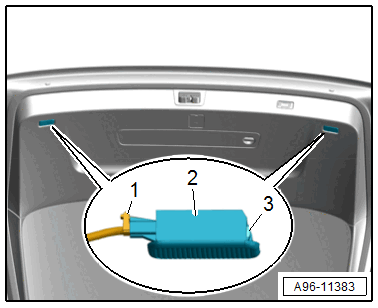

GWWA96-11383Courtesy of AUDI

-- Press the tab -3- in using a flat-head screwdriver and pry out the rear lid lamp -2-.

-- Release and disconnect the connector -1-.
