Left And Right Front FOOTWELL Illumination Bulb -L151- / -L152-, Removing And Installing: Removing

WARNING: This page is about a different car, the 2024 Audi SQ8, 2024 Audi Q8, 2023 Audi SQ8, and 2023 Audi Q8. However, it is still accessible from the selected car via links, so may be relevant.

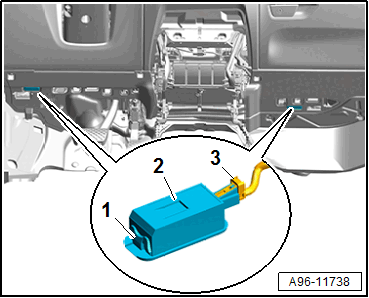

GWWA96-11738Courtesy of AUDI

-- Using a flat-head screwdriver, press in the retaining tab -1- and pry out the footwell lamp -2-.

-- Release and disconnect the connector -3-.
