Front Center Console Ambient Lighting Bulb 1 And 3 -L193- / -L195-, Removing And Installing: Removing
WARNING: This page is about a different car, the 2024 Audi SQ8, 2024 Audi Q8, 2023 Audi SQ8, and 2023 Audi Q8. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the lower center console decorative trim. Refer to CENTER CONSOLE DECORATIVE TRIM, REMOVING AND INSTALLING .
This is disassembled to remove the faulty LED module.

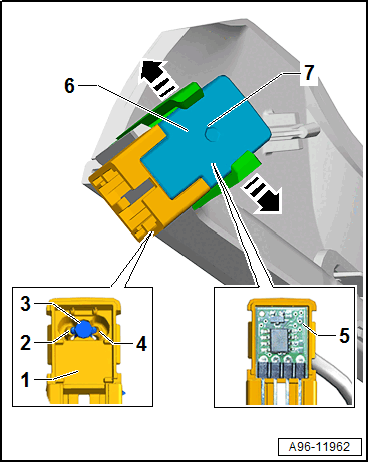

-- Release the retainers -arrows- and remove the cover -7-.
-- Remove the circuit board -5-.
-- Release the retainers -2 and 4- and remove the housing -1- from the fiber-optic cable -3-.
