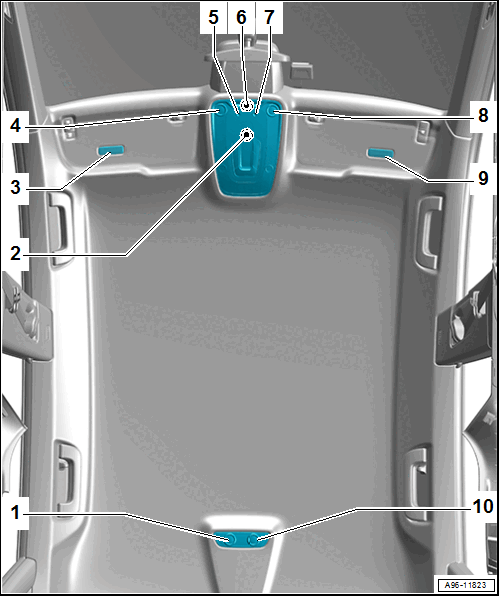

Component Location Overview - Roof Trim Panel Lamps

WARNING: This page is about a different car, the 2024 Audi SQ8, 2024 Audi Q8, 2023 Audi SQ8, and 2023 Audi Q8. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of AUDI

Right Rear Reading Lamp -W12-
- Component of the Rear Interior Lamp -WX2-
- The rear interior lamp must be replaced if one of the LEDs is faulty. Refer to REAR INTERIOR LAMP/READING LAMP, REMOVING AND INSTALLING .
Front Roof Module -WX3-
- The front roof module must be replaced if an LED is faulty. Refer to FRONT INTERIOR LAMP/READING LAMP, REMOVING AND INSTALLING .
Front Passenger Vanity Mirror Lamp -W14-
- Removing and installing. Refer to DRIVER AND FRONT PASSENGER VANITY MIRROR LAMP -W20- / -W14-, REMOVING AND INSTALLING .
Right Front Reading Lamp -W66-
- The front roof module must be replaced if an LED is faulty. Refer to FRONT INTERIOR LAMP/READING LAMP, REMOVING AND INSTALLING .
Right Ambient Lighting
- The front roof module must be replaced if an LED is faulty. Refer to FRONT INTERIOR LAMP/READING LAMP, REMOVING AND INSTALLING .
Front Passenger Airbag -Disabled- Indicator Lamp -K145-
- The front roof module must be replaced if an indicator lamp is faulty. Refer to FRONT INTERIOR LAMP/READING LAMP, REMOVING AND INSTALLING .
Left Ambient Lighting
- The front roof module must be replaced if an LED is faulty. Refer to FRONT INTERIOR LAMP/READING LAMP, REMOVING AND INSTALLING .
Left Front Reading Lamp -W65-
- The front roof module must be replaced if an LED is faulty. Refer to FRONT INTERIOR LAMP/READING LAMP, REMOVING AND INSTALLING .
Driver Vanity Mirror Lamp -W20-
- Removing and installing. Refer to DRIVER AND FRONT PASSENGER VANITY MIRROR LAMP -W20- / -W14-, REMOVING AND INSTALLING .
Left Rear Reading Lamp -W11-
- Component of the Rear Interior Lamp -WX2-
- The rear interior lamp must be replaced if one of the LEDs is faulty. Refer to REAR INTERIOR LAMP/READING LAMP, REMOVING AND INSTALLING .
