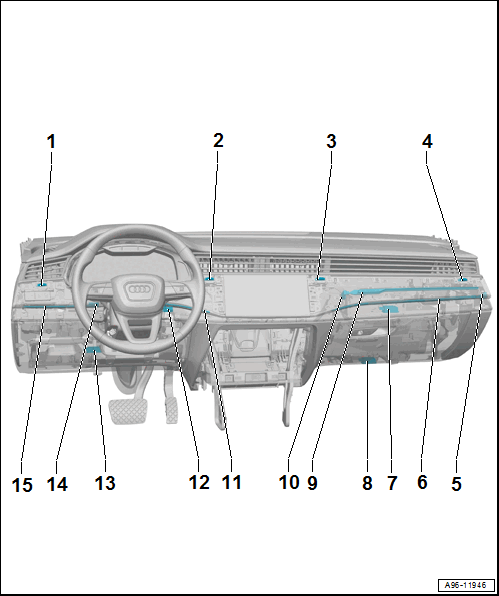

Component Location Overview - Instrument Panel Lamps
WARNING: This page is about a different car, the 2024 Audi SQ8, 2024 Audi Q8, 2023 Audi SQ8, and 2023 Audi Q8. However, it is still accessible from the selected car via links, so may be relevant.
- Left Instrument Panel Vent Illumination Bulb -L67-
- Cannot be replaced separately if faulty.
- Replacing. Refer to OUTER INSTRUMENT PANEL VENT, REMOVING AND INSTALLING .
- Center Instrument Panel Vent Illumination Bulb -L68- Left
- Cannot be replaced separately if faulty.
- Replacing. Refer to OUTER INSTRUMENT PANEL VENT, REMOVING AND INSTALLING .
- Center Instrument Panel Vent Illumination Bulb -L68- Right
- Cannot be replaced separately if faulty.
- Replacing. Refer to OUTER INSTRUMENT PANEL VENT, REMOVING AND INSTALLING .
- Right Instrument Panel Vent Illumination Bulb -L69-
- Cannot be replaced separately if faulty.
- Replacing. Refer to OUTER INSTRUMENT PANEL VENT, REMOVING AND INSTALLING .
- Instrument Panel Ambient Lighting Lamp 3 -L294-
- Removing and installing. Refer to Instrument Panel Ambient Lighting Lamp 3 -L294-, REMOVING AND INSTALLING .
- Ambient Lighting Fiber-Optic Cable
- Instrument Panel Ambient Lighting Lamp 3 -L294-
- Removing and installing. Refer to FIBER-OPTIC CABLE FOR RIGHT INSTRUMENT PANEL AMBIENT LIGHTING, REMOVING AND INSTALLING .
- Glove Compartment Lamp -W6-
- Removing and installing. Refer to Glove Compartment Lamp -W6-, REMOVING AND INSTALLING .
- Right Front Footwell Illumination Bulb -L152-
- Removing and installing. Refer to LEFT AND RIGHT FRONT FOOTWELL ILLUMINATION BULB -L151- / -L152-, REMOVING AND INSTALLING .
- Ambient Lighting Fiber-Optic Cable
- Instrument Panel Contour Illumination Lamp 1 -L243-
- Cannot be replaced separately Remove the upper front passenger side instrument panel decorative trim. Refer to INSTRUMENT PANEL DECORATIVE TRIM, REMOVING AND INSTALLING .
- Instrument Panel Contour Illumination Lamp 1 -L243-
- Removing and installing. Refer to Instrument Panel Contour Illumination Lamp 1 -L243-, REMOVING AND INSTALLING .
- Ambient Lighting Fiber-Optic Cable
- Instrument Panel Ambient Lighting Lamp 2 -L293-
- Removing and installing. Refer to FIBER-OPTIC CABLE FOR CENTER INSTRUMENT PANEL AMBIENT LIGHTING, REMOVING AND INSTALLING .
- Instrument Panel Ambient Lighting Lamp 2 -L293-
- Removing and installing. Refer to Instrument Panel Ambient Lighting Lamp 2 -L293-, REMOVING AND INSTALLING .
- Left Front Footwell Illumination Bulb -L151-
- Removing and installing. Refer to LEFT AND RIGHT FRONT FOOTWELL ILLUMINATION BULB -L151- / -L152-, REMOVING AND INSTALLING .
- Instrument Panel Ambient Lighting Lamp 1 -L292-
- Removing and installing. Refer to Instrument Panel Ambient Lighting Lamp 1 -L292-, REMOVING AND INSTALLING .
- Ambient Lighting Fiber-Optic Cable
- Instrument Panel Ambient Lighting Lamp 1 -L292-
- Removing and installing. Refer to FIBER-OPTIC CABLE FOR LEFT INSTRUMENT PANEL AMBIENT LIGHTING, REMOVING AND INSTALLING .
