Component Location Overview - Front Door Lamps

WARNING: This page is about a different car, the 2024 Audi SQ8, 2024 Audi Q8, 2023 Audi SQ8, and 2023 Audi Q8. However, it is still accessible from the selected car via links, so may be relevant.

The overview shows a LHD vehicle as an example. For RHD vehicles the layout is a mirror image.

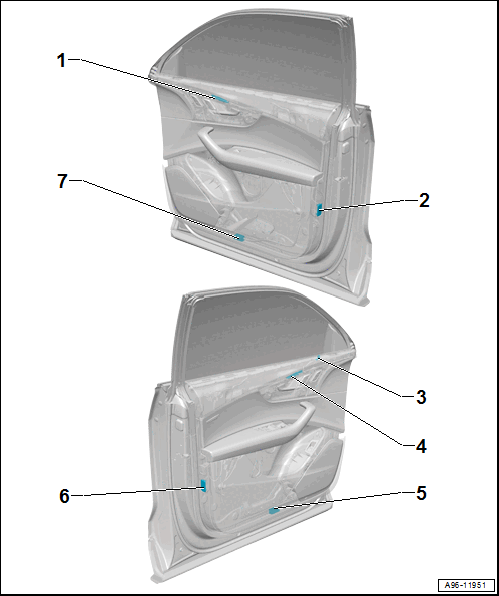

GWWA96-11951Courtesy of AUDI
  1. Passenger Side Interior Door Handle Illumination Lamp -L220-
  2. Front Passenger Side Door Warning Reflector
  3. Central Locking -Safe- Indicator Lamp -K133-
  4. Driver Side Interior Door Handle Illumination Lamp -L219-
  5. Driver Side Entry Lamp -W92-
  6. Driver Side Door Warning Reflector
  7. Passenger Side Entry Lamp -W93-
