Release Button in Rear Lid Handle -E234-, REMOVING AND INSTALLING: Removing

WARNING: This page is about a different car, the 2024 Audi SQ8, 2024 Audi Q8, 2023 Audi SQ8, and 2023 Audi Q8. However, it is still accessible from the selected car via links, so may be relevant.

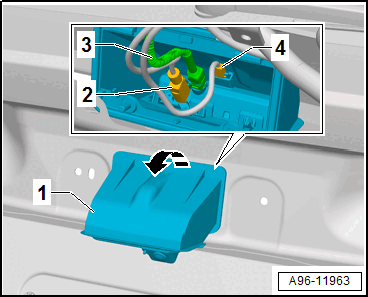

Fig 1: Housing for Release Button In Rear Lid Handle -E234-

Courtesy of AUDI

-- Remove the tail lamp from the rear lid. Refer to REAR LID TAIL LAMP, REMOVING AND INSTALLING .

-- Loosen the wire clip -2- and remove the nuts -3-.

-- Remove the housing with the button -1- outward in the -direction of the arrow-.

Courtesy of AUDI

-- Release and disconnect the connector -4-.

-- Equipped on some models disconnect the washer fluid hose -3- for the rearview camera washer nozzle.

-- Free up and disconnect the connector -2- for the rearview camera.

-- Remove the housing with the button.
