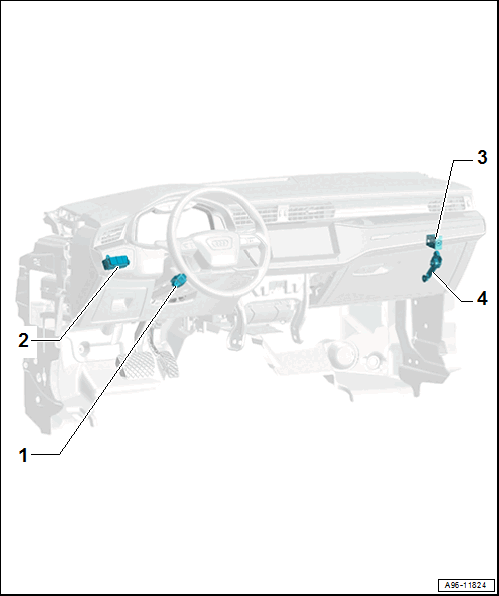

Component Location Overview - Instrument Panel Controls
WARNING: This page is about a different car, the 2024 Audi SQ8, 2024 Audi Q8, 2023 Audi SQ8, and 2023 Audi Q8. However, it is still accessible from the selected car via links, so may be relevant.
The overview shows a LHD vehicle as an example. For RHD vehicles the layout is a mirror image.
- Steering Column Adjustment Switch -E167-
- Removing and installing. Refer to Steering Column Adjustment Switch -E167-, REMOVING AND INSTALLING .
- Light Switch -E1-
- With the following integrated components
- Rear Fog Lamp Button -E314-
- Fog Lamp Button -E315-
- The components cannot be replaced separately.
- Replace the light switch if one of the components is faulty
- Removing and installing. Refer to Light Switch -E1-, REMOVING AND INSTALLING .
- With the following integrated components
- Front Passenger Airbag Deactivation Key Switch -E224-
- Equipped on some models
- Removing and installing. Refer to FRONT PASSENGER AIRBAG DEACTIVATION KEY SWITCH, REMOVING AND INSTALLING (NOT FOR NORTH AMERICA MARKET) .
- Glove Compartment Lamp Switch -E26-
- Removing and installing. Refer to Glove Compartment Lamp Switch -E26-, REMOVING AND INSTALLING .

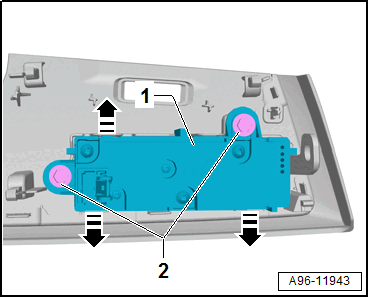

Light SwitchE1 tightening specification
-- Tighten the screws -2- to 1 Nm.
