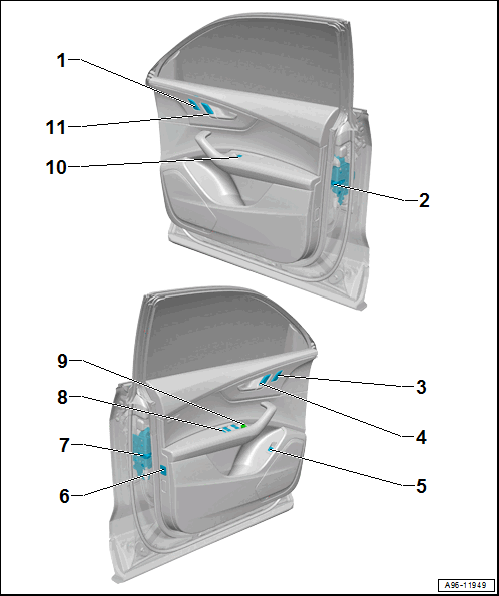

Component Location Overview - Controls In Front Doors
WARNING: This page is about a different car, the 2024 Audi SQ8, 2024 Audi Q8, 2023 Audi SQ8, and 2023 Audi Q8. However, it is still accessible from the selected car via links, so may be relevant.
The overview shows a LHD vehicle as an example. For RHD vehicles the layout is a mirror image.
- Front Passenger Seat Memory Settings Control Head -E465-
- With the following integrated components
- Memory Seat Position 1 Button in Front Passenger Door -E513-
- Memory Seat Position 2 Button in Front Passenger Door -E514-
- Removing and installing. Refer to DRIVER AND FRONT PASSENGER SEAT MEMORY SETTINGS CONTROL HEAD -E464- / -E465-, REMOVING AND INSTALLING .
- With the following integrated components
- Front Passenger Door Contact Switch -F3-
- Integrated in the door lock
- Cannot be replaced separately
- Replace the door lock if it is faulty. Refer to DOOR LOCK, REMOVING AND INSTALLING .
- Driver Seat Memory Settings Control Head -E464-
- With the following integrated components
- Memory Seat Position 1 Button -E218-
- Memory Seat Position 2 Button -E219-
- Removing and installing. Refer to DRIVER AND FRONT PASSENGER SEAT MEMORY SETTINGS CONTROL HEAD -E464- / -E465-, REMOVING AND INSTALLING .
- With the following integrated components
- Driver Interior Locking Button -E308-
- Removing and installing. Refer to DRIVER AND FRONT PASSENGER INTERIOR LOCKING BUTTON -E308- / -E309-, REMOVING AND INSTALLING .
- Rear Lid Remote Release Button -E233-
- Fuel Filler Door Release Button -E319- Equipment Version
- Removing and installing. Refer to Rear Lid Remote Release Button -E233-, REMOVING AND INSTALLING .
- Interior Monitoring and Vehicle Inclination Deactivation Button -E616-
- Removing and installing. Refer to Interior Monitoring and Vehicle Inclination Deactivation Button -E616-, REMOVING AND INSTALLING .
- Driver Door Contact Switch -F2-
- Integrated in the door lock
- Cannot be replaced separately
- Replace the door lock if it is faulty. Refer to DOOR LOCK, REMOVING AND INSTALLING .
- Power Window Control Head in Driver Door -EX36-
- With the following integrated components
- Driver Power Window Button -E710-
- Driver Side Rear Power Window Button In Driver Door -E712-
- Passenger Side Rear Power Window Button In Driver Door -E714-
- Front Passenger Power Window Button in Driver Door -E715-
- Child Safety Lock Button -E318-
- Left Child Safety Lock Button -E510-
- Right Child Safety Lock Button -E511-
- The components cannot be replaced separately.
- Replace the control head if faulty
- Removing and installing. Refer to Power Window Control Head in Driver Door -EX36-, REMOVING AND INSTALLING .
- With the following integrated components
- Exterior Rearview Mirror Adjuster -EX11-
- With the following integrated components
- Mirror Adjusting Switch -E43-
- Mirror Selector Switch -E48-
- Removing and installing. Refer to Exterior Rearview Mirror Adjuster -EX11-, REMOVING AND INSTALLING .
- With the following integrated components
- Front Passenger Door Power Window Switch -EX27-
- Removing and installing. Refer to Front Passenger Door Power Window Switch -EX27-, REMOVING AND INSTALLING .
- Front Passenger Interior Locking Button -E309-
- Removing and installing. Refer to DRIVER AND FRONT PASSENGER INTERIOR LOCKING BUTTON -E308- / -E309-, REMOVING AND INSTALLING .
