Center Console Switch Module 1 -EX23-, REMOVING AND INSTALLING: Removing

WARNING: This page is about a different car, the 2024 Audi SQ8, 2024 Audi Q8, 2023 Audi SQ8, and 2023 Audi Q8. However, it is still accessible from the selected car via links, so may be relevant.

Fig 1: Center Console Switch Module 1 -EX23-

Courtesy of AUDI

-- Remove the center console cover. Refer to CENTER CONSOLE COVER, REMOVING AND INSTALLING .

-- Release and disconnect the connectors -1, 2, 3-.

-- Remove the bolts -arrows-.

-- Release the locking mechanisms at the decorative frame -arrows-.

Courtesy of AUDI

-- Remove the decorative frame from the display -2- together with the Center Console Switch Module 1 -EX23- -3-, Access/Start Authorization Button -E408- -1- and the Driver Volume Control -E67-.

-- Release the retainers -arrows-.

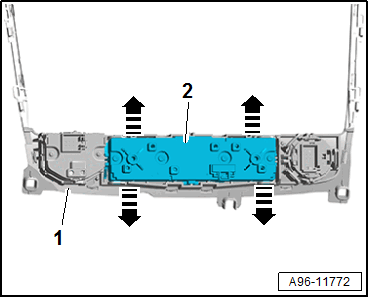

Courtesy of AUDI

-- Remove the switch module -2- from the switch trim -1-.
