Overview - Cigarette Lighter, 12 V Socket

WARNING: This page is about a different car, the 2024 Audi SQ8, 2024 Audi Q8, 2023 Audi SQ8, and 2023 Audi Q8. However, it is still accessible from the selected car via links, so may be relevant.

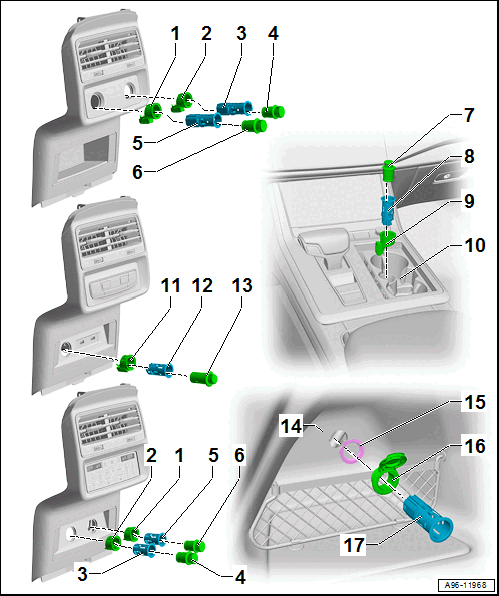

Fig 1: Exploded View Of Cigarette Lighter, 12 V Socket, From Product Improvement

Courtesy of AUDI

Socket Illumination Bulb -L42-
- For the 12 V Socket 4 -U20-
- Removing and installing. Refer to Socket Illumination Bulb -L42-, REMOVING AND INSTALLING .
Cigarette Lighter Illumination Bulb
- There are different versions.
  Versions with Cigarette Lighter Illumination Bulb -L28- for Rear Cigarette Lighter -U9-
- Removing and installing. Refer to Cigarette Lighter Illumination Bulb -L28-, REMOVING AND INSTALLING .
  Versions with Socket Illumination Bulb -L42- for 12 V Socket 2 -U18-
- Removing and installing. Refer to Socket Illumination Bulb -L42-, REMOVING AND INSTALLING .
Cigarette Lighter/12 V Socket
- There are different versions.
- Equipment versions with Rear Cigarette Lighter -U9- or 12 V Socket 2 -U18-
- Removing and installing. Refer to Rear Cigarette Lighter -U9- /12 V Socket 2 -U18-, REMOVING AND INSTALLING .
Cigarette Lighter/Blind Cover
12 V Socket 4 -U20-
- Removing and installing. Refer to Rear Cigarette Lighter -U9- /12 V Socket 2 -U18-, REMOVING AND INSTALLING .
Blind Cover
Cigarette Lighter/Blind Cover
Cigarette Lighter/12 V Socket
- There are different versions.
- Versions with Cigarette Lighter -U1- or 12 V Socket -U5-
- Removing and installing. Refer to Cigarette Lighter -U1- /12 V Socket -U5-, REMOVING AND INSTALLING .
Cigarette Lighter Illumination Bulb
- There are different versions.
  Versions with Cigarette Lighter Illumination Bulb -L28- for Cigarette Lighter -U1-
- Removing and installing. Refer to Cigarette Lighter Illumination Bulb -L28-, REMOVING AND INSTALLING .
  Versions with Socket Illumination Bulb -L42- for 12 V Socket -U5-
- Removing and installing. Refer to Socket Illumination Bulb -L42-, REMOVING AND INSTALLING .
Cupholder
- For Cigarette Lighter -U1- /12 V Socket -U5-
Cigarette Lighter Illumination Bulb
- There are different versions.
  Versions with Cigarette Lighter Illumination Bulb -L28- for Rear Cigarette Lighter -U9-
- Removing and installing. Refer to Cigarette Lighter Illumination Bulb -L28-, REMOVING AND INSTALLING .
  Versions with Socket Illumination Bulb -L42- for 12 V Socket 4 -U20-
- Removing and installing. Refer to Socket Illumination Bulb -L42-, REMOVING AND INSTALLING .
Cigarette Lighter/12 V Socket
- There are different versions.
- Equipped on some models: with Rear Cigarette Lighter -U9- or 12 V Socket 4 -U20-
- Removing and installing. Refer to Rear Cigarette Lighter -U9- /12 V Socket 2 -U18-, REMOVING AND INSTALLING .
Cigarette Lighter/Blind Cover
Luggage Compartment Side Trim Panel
Nut
- 2 Nm
Socket Illumination Bulb -L42-
- for 12 V Socket 3 -U19-
- Removing and installing. Refer to Socket Illumination Bulb -L42-, REMOVING AND INSTALLING .
12 V Socket 3 -U19-
- Removing and installing. Refer to 12 V Socket 3 -U19-, REMOVING AND INSTALLING .
