Cigarette Lighter -U1- /12 V Socket -U5-, REMOVING AND INSTALLING: Removing

WARNING: This page is about a different car, the 2024 Audi SQ8, 2024 Audi Q8, 2023 Audi SQ8, and 2023 Audi Q8. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the center console cover. Refer to OVERVIEW - CENTER CONSOLE .

-- Free up and disconnect the connector.

-- The release tabs -2- on the Cigarette Lighter Release Tool:T40148 must engage in the openings on the cigarette lighter -3- -arrow-. To do so, the threaded rod -1- must be slid all the way down.

Fig 1: 12 V Socket 5 -U26-

Courtesy of AUDI

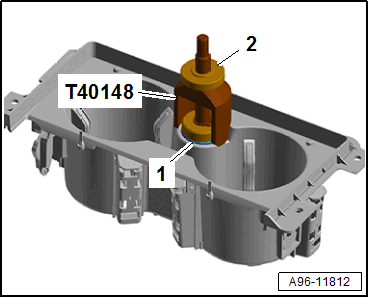

-- Insert the Cigarette Lighter Release Tool:T40148 into the socket -1- until it stops.

Courtesy of AUDI

-- Turn the thumbwheel -2- at the release tool clockwise all the way to the end stop.

The plunger -2- is pulled up and the release tabs -1- are spreading in the Cigarette Lighter Release Tool:T40148 -arrows-.

Fig 2: Identifying Release Tool T40148 In Use
Courtesy of AUDI

-- Remove the cigarette lighter using the release tool from the illumination ring with the Cigarette Lighter Illumination Bulb -L28-.

-- Guide the wire out through the mount.
