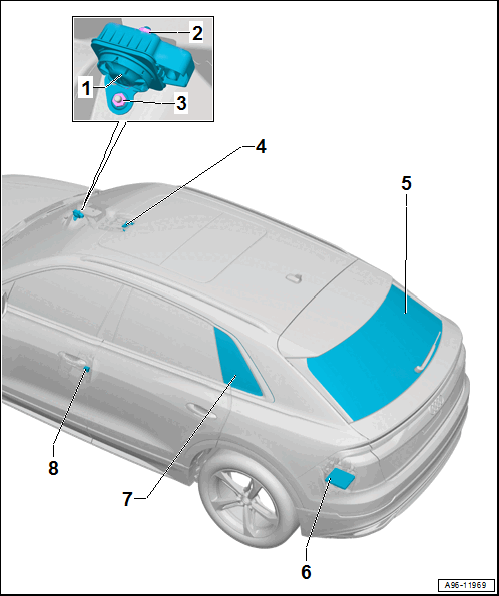

Overview - Interior Monitoring

WARNING: This page is about a different car, the 2024 Audi SQ8, 2024 Audi Q8, 2023 Audi SQ8, and 2023 Audi Q8. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of AUDI

Alarm Horn -H12-
- Removing and installing. Refer to Alarm Horn -H12-, REMOVING AND INSTALLING .
Nut
- 7 Nm
Nut
- 8.5 Nm
Anti-Theft Alarm System Sensor -G578-
- With interior monitoring individual sensor
- Removing and installing. Refer to Anti-Theft Alarm System Sensor -G578-, REMOVING AND INSTALLING .
Rear Window Breakage Sensor -G304-
- Integrated in the rear window
- Removing and Installing. Refer to REAR WINDOW, REMOVING AND INSTALLING .
Comfort System Central Control Module -J393-
- Removing and Installing. Refer to COMFORT SYSTEM CENTRAL CONTROL MODULE -J393-, REMOVING AND INSTALLING .
Side Window Breakage Sensor
- Left Rear Window Breakage Sensor -G183-
- Right Rear Window Breakage Sensor -G184-
- Integrated in the side window
- Removing and Installing. Refer to REAR SIDE WINDOW, REMOVING AND INSTALLING .
Interior Monitoring and Vehicle Inclination Deactivation Button -E616-
- Driver door only
- Removing and installing. Refer to Interior Monitoring and Vehicle Inclination Deactivation Button -E616-, REMOVING AND INSTALLING .
