Heater And A/C Unit, Removing And Installing, Q5 Security: Removing

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the left and right tower brace. Refer to TOWER BRACE, REMOVING AND INSTALLING .

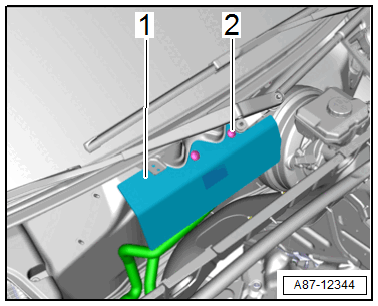

-- Remove the bolts -2- and remove the protective plate covering for the refrigerant line -1-.

GWWA87-12344Courtesy of AUDI OF AMERICA, LLC

-- For the continuation of the procedure. Refer to HEATER AND A/C UNIT, REMOVING AND INSTALLING .
