Fresh Air Blower -V2- WITH Fresh Air Blower Control Module -J126-, REMOVING AND INSTALLING: Removing

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of AUDI OF AMERICA, LLC

-- On vehicles with high-voltage system, switch on the "parking air conditioner" function (deactivate). Refer to the Owner's Manual.

-- Position the front passenger seat as far back as possible.

-- Switch off the ignition.

-- Remove the glove compartment. Refer to GLOVE COMPARTMENT, REMOVING AND INSTALLING .

-- Remove the footwell vent on the front passenger side. Refer to FRONT PASSENGER SIDE FOOTWELL VENT, REMOVING AND INSTALLING .

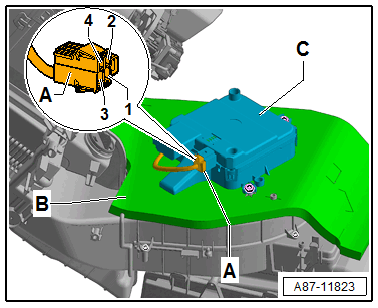

-- Release the connector -A- and remove from the Fresh Air Blower -V2- (with the Fresh Air Blower Control Module -J126-) -C-.

Courtesy of AUDI OF AMERICA, LLC

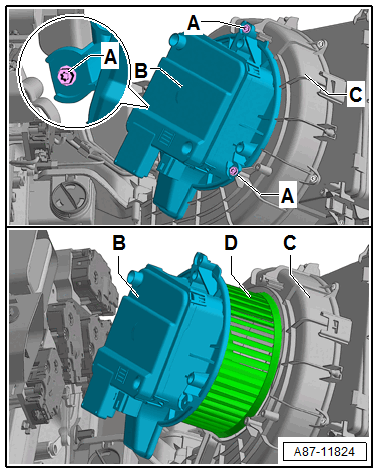

-- Remove the insulation -B-.

-- Remove the bolts -A-.

Courtesy of AUDI OF AMERICA, LLC

CAUTION:

There is a risk of burns from the hot radiating surface of the fresh air blower control module.

It is possible to burn hands.

- Wear safety gloves.

CAUTION:

Risk of damaging the fresh air blower if operated incorrectly.

Imbalance and problems during operation is possible.

- Avoid using force on the fan wheel.

- Never move the balancing weight on the fan wheel.

- Do not place the fresh air blower on the fan wheel.

-- Remove the Fresh Air Blower -V2- (with the Fresh Air Blower Control Module -J126-) -B- carefully from air intake manifold -C-.
