Condensation Water Drain, Removing And Installing, Q5: Installing

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of AUDI OF AMERICA, LLC

Install in reverse order of removal and note the following:

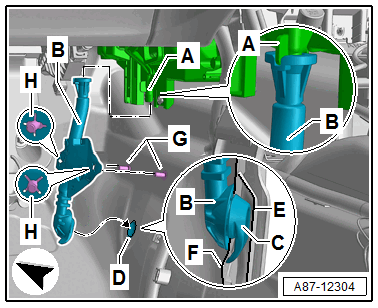

-- Check both heater and A/C unit condensation water drains -A- for soiling (for example, using a piece of wire).

-- Check the gap between the insulation mat installed in the center tunnel -E- and the end of the condensation water hose -C- above the openings -F- in the floor panel -D- ; the gap must be large enough so that the condensation water can flow out of the condensation water drain hose -B-.

-- Install both condensation water drain hoses -B- so that they are not twisted or crushed (different versions for the left and right side). Refer to the Parts Information.

-- Insert the condensation water drain -B- and push with pretension in the floor panel -F-.

-- Make sure the carpet does not push up against the condensation water drain hose -B- when installing.

-- If a condensation water drain hose -B- fits too loose on the heater and A/C unit condensation water drain -A-, secure it with a clamp, for example, so that it cannot slide off.
