Auxiliary Heater Heating Element -Z35-, REMOVING AND INSTALLING: Removing

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.

-- On vehicles with high-voltage system, switch on the "parking air conditioner" function (deactivate). Refer to the Owner's Manual.

-- Switch the ignition on.

-- Move the right front seat all the way to the rear.

-- Switch off the ignition.

-- Remove the footwell vent on the front passenger side. Refer to FRONT PASSENGER SIDE FOOTWELL VENT, REMOVING AND INSTALLING .

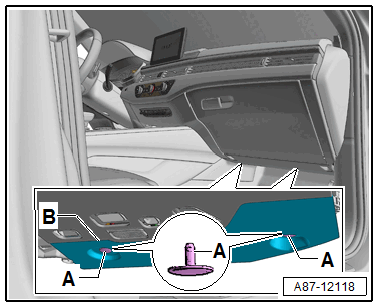

-- Remove the screw clips -A-.

Fig 1: Locating Tabs For Dust & Pollen Filter

Courtesy of AUDI OF AMERICA, LLC

-- Loosen the insulation -B- from the heater and A/C unit air intake housing and remove.

-- If equipped, remove the air duct for the glove compartment cooling. Refer to AIR DUCT FOR GLOVE COMPARTMENT COOLING, REMOVING AND INSTALLING .

Courtesy of AUDI OF AMERICA, LLC

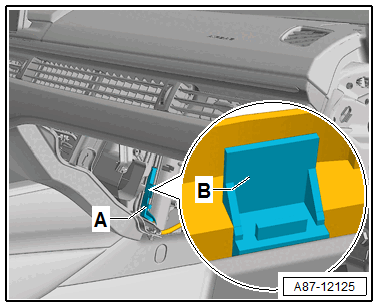

-- Release the locking mechanism -B- on the connector -A- to the Auxiliary Heater Heating Element -Z35- and remove the connector -A-.

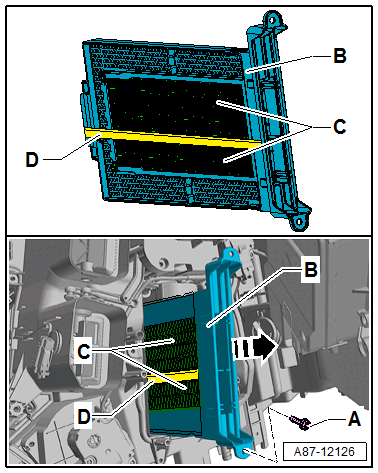

-- Remove the bolts -A-.

Courtesy of AUDI OF AMERICA, LLC

CAUTION:

There is a risk of burns by the metal surfaces on the auxiliary heater heating element. Heating elements can be very hot.

It is possible for the skin to be burned.

- Wear safety gloves.

- Never touch the metal surfaces of the heating element.

-- Pull the Auxiliary Heater Heating Element -Z35- -B- from the installation slot of the heater and A/C unit.
