Air Intake Manifold From Heater And A/C Unit, Removing And Installing: Removing
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the front heater and A/C unit. Refer to HEATER AND A/C UNIT, REMOVING AND INSTALLING .
-- Remove the acoustic cover and insulation from the air intake manifold -C-. Refer to OVERVIEW - HEATER AND A/C UNIT .
-- Mark the connector to the actuators on the air intake manifold and remove. Refer to OVERVIEW - ACTUATORS ON AIR INTAKE HOUSING .

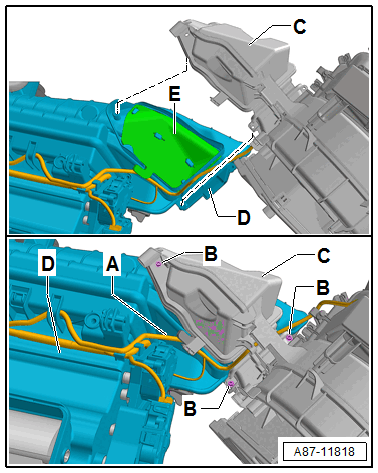

-- Mark the routing of the wiring harness -A- on the air intake manifold -C- (or take a picture) and remove from the air intake manifold. Refer to OVERVIEW - HEATER AND A/C UNIT .
-- Remove the bolts -B-.
-- Disconnect the air intake manifold -C- from the heater and A/C unit evaporator housing -D-. Refer to OVERVIEW - HEATER AND A/C UNIT .
