Rear A/C Display Control Head -E265-, REMOVING AND INSTALLING, "High" A/C SYSTEM, Q5: Removing
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
-- Switch off the ignition.

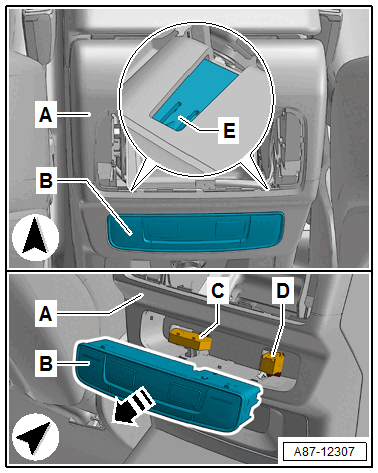

-- Remove the rear center console vent -A-. Refer to OVERVIEW - CENTER CONSOLE .
-- Loosen the clamp -E- from the Rear A/C Display Control Head -E265-.
-- Pry out the Rear A/C Display Control Head -E265- from the rear center console -A- in direction of -arrow-.
-- Disconnect the connectors -C- and if equipped connector -D- from the Rear A/C Display Control Head -E265- -B-.
