Rear A/C Display Control Head -E265-, REMOVING AND INSTALLING, "High" A/C SYSTEM, A4 AND A5: Removing
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
-- Switch off the ignition.

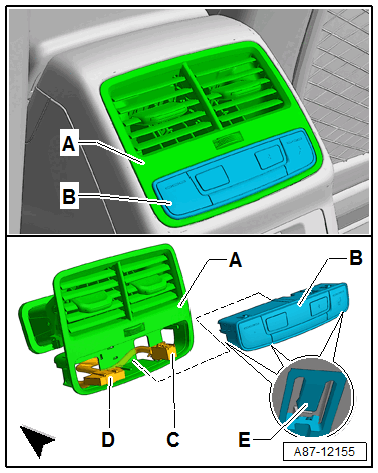

-- Remove the rear center console vent -A-. Refer to OVERVIEW - CENTER CONSOLE .
-- Disconnect the connectors -C- and if equipped connector -D- from the Rear A/C Display Control Head -E265- -B-.
-- Loosen the clamp -E- and remove the Rear A/C Display Control Head -E265- -B-.
