Front A/C Display Control Head -E87-, REMOVING AND INSTALLING, Q5: Removing
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
-- Switch off the ignition.

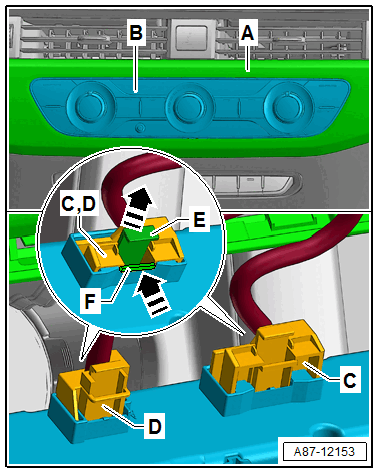

-- Remove the trim -A- with the Front A/C Display Control Head -E87- -B- from the instrument panel. Refer to OVERVIEW - INSTRUMENT PANEL .
-- If multiple identical in construction connectors are installed in this area, mark the connectors -C and D-.
TIP
- Depending on the versions of connectors -C and D- on the Front A/C Display Control Head -E87- this illustration shows the layout on a "Low" A/C system.
-- Loosen the locking mechanism -E- from the connectors -C and D- by pulling -arrow-.
-- Loosen the catch of the connectors -C and D- by pressing -arrow- and remove the connector.
-- Remove the bolts -C-.
-- Release the bracket -A- and loosen the Front A/C Display Control Head -E87- -B- from the trim -D-.
