Front A/C Display Control Head -E87-, REMOVING AND INSTALLING, Q5: Installing
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.

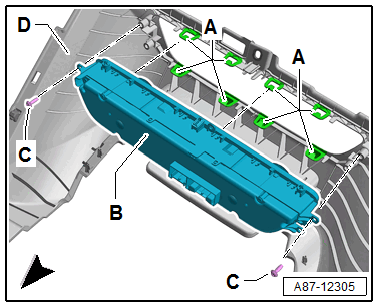

-- Secure the Front A/C Display Control Head -E87- -B- on the guides for the trim -D-.
-- Install the Front A/C Display Control Head -E87- -B- all the way in the trim -D- and the tabs -A- click into place.
-- Install the bolts -C-.
Reinstall in reverse order of removal. Note the following:
-- After installing the Front A/C Display Control Head -E87- check the DTC memory and if necessary erase. Use the Vehicle Diagnostic Tester.
-- If the Front A/C Display Control Head -E87- is replaced, complete the test plan using the Vehicle Diagnostic Tester.
Tightening Specification
| Component | Tightening Specification |
|---|---|
| Front A/C Display Control Head E87 on the trim | 1.5 Nm |
