Front A/C Display Control Head -E87-, REMOVING AND INSTALLING, A4 AND A5: Installing
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.

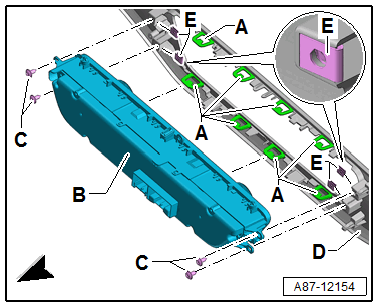

-- Insert the Front A/C Display Control Head -E87- -B- in the receiving shaft from the trim -D- and press in until the tabs -A- click into place.
-- Check that the Front A/C Display Control Head -E87- -B- is seated correctly in the tabs -A- after replacing the trim -D-.
- If the tabs -A- are not correctly engaged or holding, the Front A/C Display Control Head -E87- -B- must be secured with the bolts -C- and spring nuts -E- (for example flat-head bolts 4.0 x 12 mm N 104 159 and spring nuts N 105 110 01). Refer to the Parts Information) in the trim -D-.
-- If equipped, install the bolts -C-.
Reinstall in reverse order of removal. Note the following:
-- After installing the Front A/C Display Control Head -E87- check the DTC memory and if necessary erase. Use the Vehicle Diagnostic Tester.
-- If the Front A/C Display Control Head -E87- is replaced, complete the test plan using the Vehicle Diagnostic Tester.
Tightening Specification
| Component | Tightening Specification |
|---|---|
| Front A/C Display Control Head E87 on the trim | 1.5 Nm |
