Front Passenger Side FOOTWELL Vent, Removing And Installing: Removing
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
-- On vehicles with high-voltage system, switch on the "parking air conditioner" function (deactivate). Refer to the Owner's Manual.
-- Position the front passenger seat as far back as possible.
-- Switch off the ignition.
-- Remove the glove compartment. Refer to GLOVE COMPARTMENT, REMOVING AND INSTALLING .

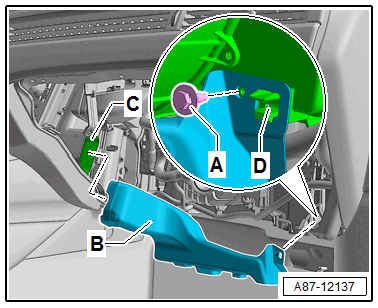

-- If equipped, remove the bolt -A-.
-- Loosen the catch -D-.
-- Remove the right footwell vent -B- from the heater and A/C unit -C-.
