Instrument Panel Vent Motor -V562-, REMOVING AND INSTALLING: Installing

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of AUDI OF AMERICA, LLC

Install in reverse order of removal and note the following:

CAUTION:

There is a risk of damaging the adjustment motor electronics when turning the mount.

- Turn the adjustment motor mount only when the wiring harness is connected.

- Install the mount carefully and slowly by hand.

The actuator mount does not have a stop. It turns constantly if the actuator is activated. Therefore, it should not be activated when the actuator is removed.
Check the connection between the actuator mount and the shaft; there must not be any play.

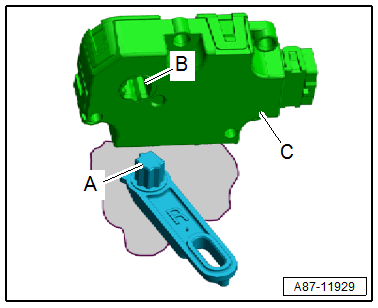

-- Check the shaft -A- and the mount -B- for the actuator -C-. They must be properly aligned so that they can be joined.

-- Attach the actuator mount -B- to the door shaft -A-.

-- Tighten the bolts -A-.

Courtesy of AUDI OF AMERICA, LLC

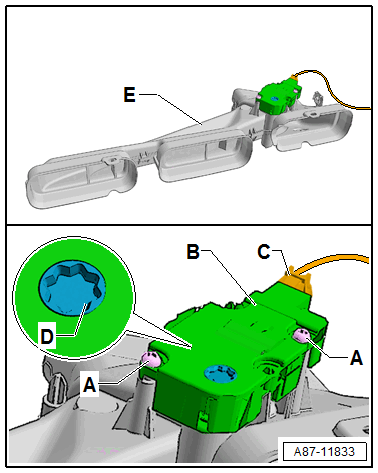

-- Route the wiring harness to the connector -C- so that it cannot come in contact with any moving parts.

-- Install the air duct -E- (to the center and the right instrument panel vents) -Item 10- Air Ducts in Vehicle List Item:Air Duct to Right Instrument Panel Vent and the Wide Vent.

-- Perform a basic setting for the A/C system. Refer to GENERAL INFORMATION AND PROCEDURES - ACTUATORS, REMOVING AND INSTALLING .
