Thermal Management Control Module -J1024-, REMOVING AND INSTALLING: Removing
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
-- Switch off (deactivate) the "parking air conditioner". Refer to Owner's Manual.
-- Switch off the ignition.
-- Remove the left front wheel housing liner. Refer to OVERVIEW - FRONT WHEEL HOUSING LINER .

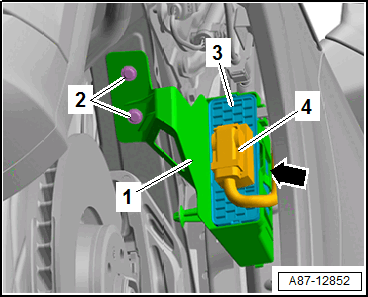

-- Release and disconnect the connector -4-.
-- Release the tab -arrow- and remove the control module -3- forward out of the bracket -1-.
-- To remove the bracket remove the expanding clips -2- on both sides and disengage the bracket and remove forward.
