Sunlight Photo Sensor -G107-, REMOVING AND INSTALLING: Removing

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.

-- Switch off the ignition.

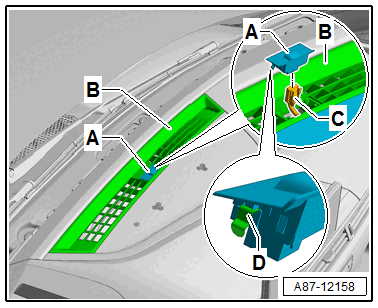

-- Carefully pry the Sunlight Photo Sensor -G107- -A- out of the defroster vent -B- (for the windshield) using a small screwdriver.

Courtesy of AUDI OF AMERICA, LLC

TIP

The Sunlight Photo Sensor -G107- -A- is held with the clips -D- on the defroster vent -B-.

-- Disengage and remove the connector -C-.
