Outside Air Temperature Sensor -G17-, REMOVING AND INSTALLING: Removing
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.

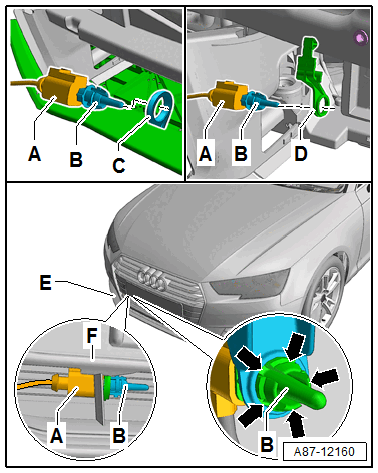

- There are different versions of the front bumper cover -E- and the lower air intake grille -F-. Depending on the version of these components and the securing the Outside Air Temperature Sensor -G17- -B- the removal is different.
- Depending on the vehicle version the bracket for the Outside Air Temperature Sensor -G17- -B- is a component of the air duct of the bumper -C- or the lower air intake grille -F-. The Outside Air Temperature Sensor -G17- -B- can also be secured via the bracket -D- on the impact member of the bumper. Refer to the Parts Information.
- The bracket for the temperature sensor -D- is depending on the version either directly clipped in the impact member of the bumper or secured with an expanding clip.
-- Switch off the ignition.
If the Outside Air Temperature Sensor -G17- -B- is not accessible from the front and via the lower air intake grille -F- :
-- Remove the front bumper cover -E-. Refer to Front Bumper .
-- Disconnect the connector -A- on the temperature sensor -B-.
-- Carefully press together the clips -arrows- at the same time loosen the Outside Air Temperature Sensor -G17- -B- from the mount.
If the Outside Air Temperature Sensor -G17- -B- is accessible from the front and via the lower air intake grille -F- :
-- Disconnect the connector -A- on the temperature sensor -B-.
-- Carefully press together the clips -arrows- at the same time loosen the Outside Air Temperature Sensor -G17- -B- from the mount.
