Left Rear Footwell Vent Temperature Sensor -G637-, REMOVING AND INSTALLING: Removing
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
-- Move the left front seat all the way to the rear.
-- Switch off the ignition.
-- Remove the cover for the opening in the carpet on the left. Refer to CARPET, REMOVING AND INSTALLING .

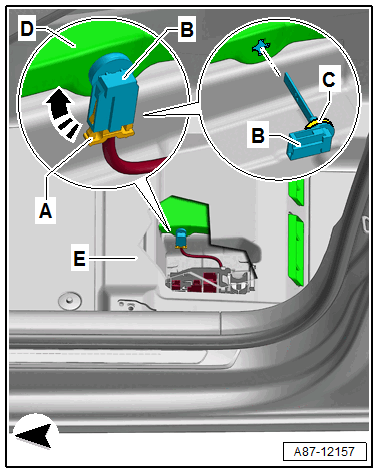

-- Lift the left carpet -E- at the opening carefully until the Left Rear Footwell Vent Temperature Sensor -G637- -B- is accessible (installed in the air duct to the vent for the left rear footwell -D-).
-- Turn the sensor -B- 90° and remove it from the air duct to the vent for the left rear footwell -D-.
-- Disengage and remove the connector -A-.
