Seat Belt Height Adjuster, Removing And Installing: Removing
WARNING: This page is about a different car, the 2023 Audi SQ8, 2023 Audi RS Q8, and 2023 Audi Q8. However, it is still accessible from the selected car via links, so may be relevant.

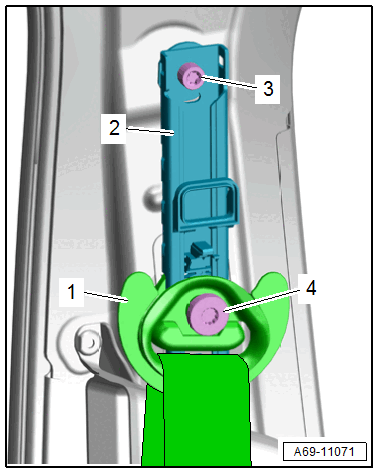

-- Move the seat belt height adjuster slider to the lowest position.
-- Remove the B-pillar upper trim panel. Refer to B-PILLAR UPPER TRIM PANEL, REMOVING AND INSTALLING .
-- Set aside the B-pillar trim panel with the seat belt webbing to the side.
-- Remove the bolt -4-.
-- Remove the seat belt relay -1- with the seat belt webbing.
-- Remove the bolt -3-.
-- Remove the seat belt height adjuster -2- upward from the B-pillar.
