Rear Seat Belt Latch, Removing And Installing: Removing

WARNING: This page is about a different car, the 2023 Audi SQ8, 2023 Audi RS Q8, and 2023 Audi Q8. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the rear bench seat cover and cushion. Refer to COVER AND CUSHION, REMOVING AND INSTALLING .

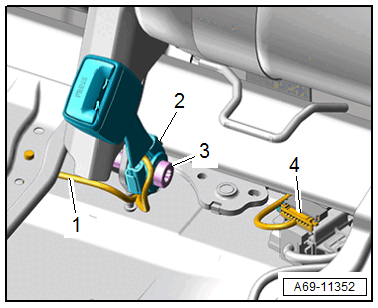

Right Seat Belt Latch

Courtesy of AUDI

-- If equipped, disconnect and free up the seat belt switch connector -1-.

-- Remove the bolt -2- and remove the seat belt latch -3-.

Left Seat Belt Latch

Courtesy of AUDI

-- If equipped, free up the seat belt switch wire -1- and disconnect the connector.

-- If equipped, disconnect and free up the seat belt switch connector -4-.

-- Remove the bolt -3- and then remove with the seat belt latch -2-.

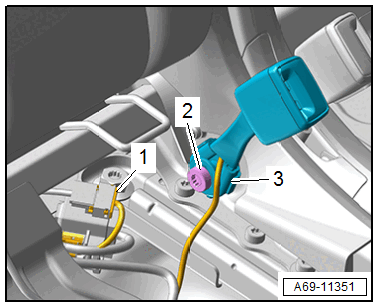

Center Seat Belt Latch

Courtesy of AUDI

-- Remove the bench seat. Refer to BENCH SEAT/SINGLE SEAT, REMOVING AND INSTALLING .

-- Remove the inner backrest hinge trim panel. Refer to OVERVIEW - BENCH SEAT/SINGLE SEATS .

-- If installed, free up the seat belt switch wire -1- and disconnect the connector.

-- Remove the bolt -2- and remove the seat belt latch -3-.
