Rear Seat Belt Guide In Center Seating Position, Removing And Installing: Removing
WARNING: This page is about a different car, the 2023 Audi SQ8, 2023 Audi RS Q8, and 2023 Audi Q8. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the rear belt end fitting in the center. Refer to REAR SEAT BELT LATCH, REMOVING AND INSTALLING .

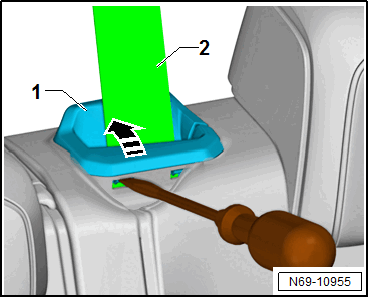

-- Pull out the seat belt webbing -2- and guide it around the headrest.
-- Push the backrest cushion with cover downward in the locking tabs area.
-- Release both locking tabs with a screwdriver.
-- At the same time, unclip the seat belt guide -1- upward in the direction of -arrow-.
-- Pull out the belt end fitting with the seat belt webbing -2- and remove the seat belt guide.
