Outer Rear Seat Belt Guide, Removing And Installing: Removing
WARNING: This page is about a different car, the 2023 Audi SQ8, 2023 Audi RS Q8, and 2023 Audi Q8. However, it is still accessible from the selected car via links, so may be relevant.
-- Pay attention to the safety precautions when working with pyrotechnic components. Refer to SAFETY PRECAUTIONS .
-- Remove the outer rear three-point seat belt. Refer to OUTER REAR THREE-POINT SEAT BELT, REMOVING AND INSTALLING .
-- Remove the D-pillar trim panel. Refer to D-PILLAR TRIM PANEL, REMOVING AND INSTALLING .

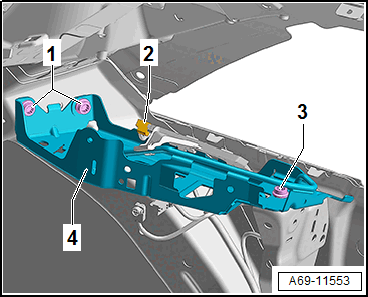

-- If equipped, remove the side window damper from the seat belt guide -4-.
-- Release and disconnect the connector -2-.
-- Remove the bolts -1 and 3-.
-- Remove the seat belt guide -4-.
