Front Three-Point Seat Belt, Removing And Installing, North AMERICAN Version: Installing
WARNING: This page is about a different car, the 2023 Audi SQ8, 2023 Audi RS Q8, and 2023 Audi Q8. However, it is still accessible from the selected car via links, so may be relevant.
Install in the reverse order of removal while noting the following:
- Pay attention to the safety precautions when working with pyrotechnic components. Refer to SAFETY PRECAUTIONS WHEN WORKING WITH PYROTECHNIC COMPONENTS .
- If parts of the seat belt system are removed due to an accident, replace the belt system bolts.
- Make sure the connectors are pushed in all the way and that they engage audibly.

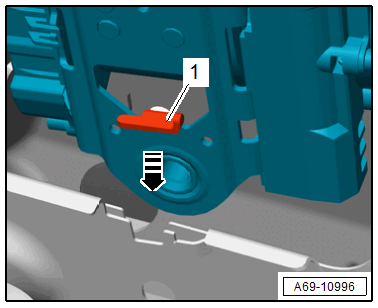

-- Insert the automatic belt retractor with the anti-twist mechanism -1- in the mount direction of -arrow- and tighten the bolt.
Further installation is performed in reverse order of the removal.
CAUTION:
Risk of airbag deployment.
Risk of injury.
- Switching on the ignition (key/button) after assembly may only be done when the driver seat is positioned all the way back.
-- Check and erase the airbag control module DTC memory because faults can be stored from when the connectors are disconnected. Use the Vehicle Diagnostic Tester.
