Front Seat Belt Latch, Removing And Installing: Removing

WARNING: This page is about a different car, the 2023 Audi SQ8, 2023 Audi RS Q8, and 2023 Audi Q8. However, it is still accessible from the selected car via links, so may be relevant.

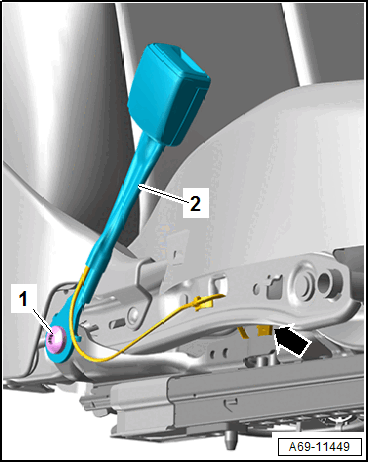

GWWA69-11449Courtesy of AUDI

-- Pay attention to the safety precautions when working with pyrotechnic components. Refer to SAFETY PRECAUTIONS .

-- Remove the front seat. Refer to FRONT SEAT, REMOVING AND INSTALLING .

-- Disconnect the connector -arrow- and free up the wire.

-- Remove the bolt -1- and remove the seat belt latch -2-.
