Passenger Occupant Detection System Pressure Sensor -G452-, REMOVING AND INSTALLING: Removing
WARNING: This page is about a different car, the 2023 Audi SQ8, 2023 Audi RS Q8, and 2023 Audi Q8. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the left rear seat cushion. Refer to COVER AND CUSHION, REMOVING AND INSTALLING .

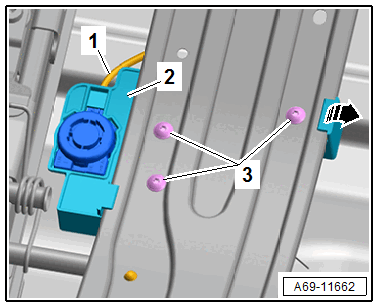

-- Remove the bolts -3-.
-- Release the catch on the rear seat backrest frame in direction of -arrow-.
-- Disengage the pressure sensor -2- on the rear seat backrest frame and remove.
-- Unclip the cable holder from the pressure sensor.
-- Release and then disconnect the wire -1- for the passenger occupant detection system.
