Driver Side Rear Seat Occupant Detection Sensor -G177- /Passenger Side Rear Seat Occupant Detection Sensor -G178-, REMOVING AND INSTALLING: Removing
WARNING: This page is about a different car, the 2023 Audi SQ8, 2023 Audi RS Q8, and 2023 Audi Q8. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the rear seat cushion. Refer to COVER AND CUSHION, REMOVING AND INSTALLING .

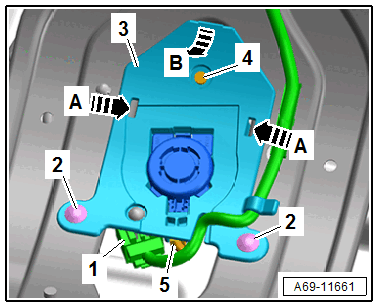

-- Unclip the bracket for the connector -1- from the passenger occupant detection sensor and free up the lines.
-- Remove the clips -2- using the Pry Lever:80-200 .
-- Release the locking tabs in direction of -A arrows- on the rear seat backrest frame using a flat-head screwdriver.
-- Remove the passenger occupant detection sensor -3- from the rear seat backrest frame in direction of -arrow B-.
-- Disconnect the connector -5- for the passenger occupant detection sensor and unclip the cable holder -4-.
