Head Curtain Airbag Guide, Removing And Installing: Removing
WARNING: This page is about a different car, the 2023 Audi SQ8, 2023 Audi RS Q8, and 2023 Audi Q8. However, it is still accessible from the selected car via links, so may be relevant.
-- Lower the headliner. Refer to HEADLINER, LOWERING .

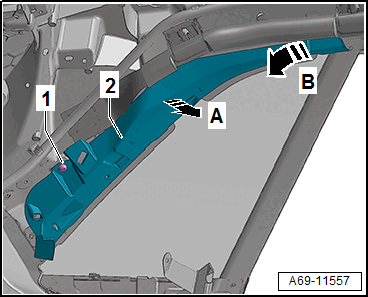

-- Remove the bolt -1-.
-- Remove the head curtain airbag guide -2- in the center out of the body in the direction of -arrow A-.
-- Tilt the head curtain airbag guide -2- out of the opening in the body in the direction of -arrow B-.
