Front Passenger Airbag Unit With Igniter, Removing And Installing: Removing
-- Pay attention to the safety precautions when working with pyrotechnic components. Refer to SAFETY PRECAUTIONS .
Risk of airbag deployment.
Risk of injury.
- Check if the airbag indicator lamp turns on or blinks.
- If the airbag indicator lamp turns on or blinks, the DTC memory must be read.
- If >>short circuit to positive<< is a DTC memory entry, disconnect the battery. Refer to BATTERY, DISCONNECTING AND CONNECTING .
- If there is a DTC memory entry, the Guided Fault Finding instructions on the Vehicle Diagnostic Tester must always be followed.
- If the airbag indicator lamp does not turn on or blink, or there is no DTC memory entry with >>short circuit to positive<< : switch off the ignition, keep the ignition key outside of the vehicle and wait 10 seconds.
-- Remove the glove compartment. Refer to GLOVE COMPARTMENT, REMOVING AND INSTALLING .
-- Remove the mount for the Information Electronics Control Module 1 -J794- and let it hang on the connected wires. Refer to COMPONENT LOCATION OVERVIEW - INFOTAINMENT SYSTEM .
Pyrotechnical components can deploy unintentionally.
Risk of injury.
- Discharge the static electricity: quickly touch the door striker.

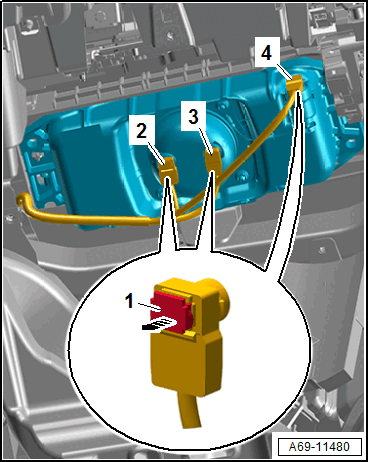

-- Release the connector lock -1- with a small flat-head screwdriver in the direction of -arrow-.
-- Disconnect the connectors -2, 3 and 4- from the Front Passenger Airbag Release Valve Igniter -N491- and Front Passenger Airbag Igniter 1 -N131- and the Front Passenger Airbag Igniter 2 -N132-.

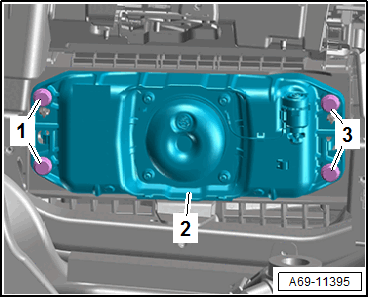

-- Remove the bolts -1 and 3-.
-- Remove the airbag -2- downward.
Risk of airbag deployment.
There is a risk of injury.
- Store the airbag with the cushion facing upward.
