Airbag Connector, Replacing: Removing
WARNING: This page is about a different car, the 2023 Audi SQ8, 2023 Audi RS Q8, and 2023 Audi Q8. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the driver side airbag. Refer to AIRBAG UNIT WITH IGNITER, REMOVING AND INSTALLING .
CAUTION:
Pyrotechnical components can deploy unintentionally.
Risk of injury.
- Discharge the static electricity: quickly touch the door striker.

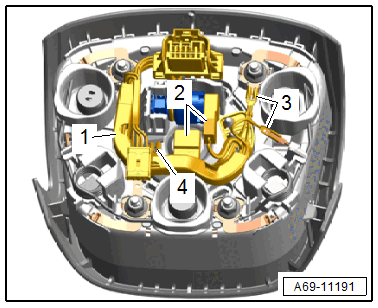

-- Release the connector lock -2- for the connector -1- with a small flat-head screwdriver in direction of -arrow-.
-- Disconnect the connectors -2- from the Front Passenger Airbag Igniter 1 Driver Airbag Igniter -N95- and Front Passenger Airbag Release Valve Igniter Driver Airbag Release Valve Igniter -N490-.
-- Disconnect the connectors -3 and 4- by releasing the retaining tab.
-- Disengage and remove the wiring harness -1- at the brackets.
