Overview - Rear Child Seat Anchors

WARNING: This page is about a different car, the 2023 Audi SQ8, 2023 Audi RS Q8, and 2023 Audi Q8. However, it is still accessible from the selected car via links, so may be relevant.

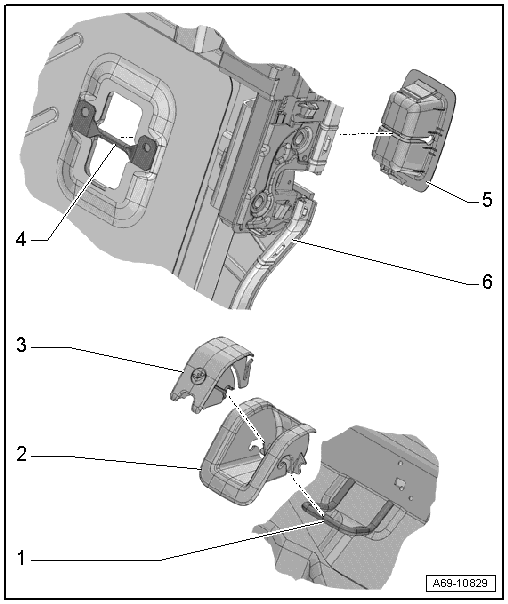

Fig 1: Exploded View Of Rear Child Seat Anchors

Courtesy of AUDI

Lower Child Seat Anchor
- Welded to the underbody
- Quantity: 4
Guide
- For the lower child seat anchor
- Quantity: 4
- Must be secure on the anchor
- Refer to LOWER CHILD SEAT ANCHOR GUIDE, REMOVING AND INSTALLING
Cover
- Must be secure on the anchor
- Refer to LOWER CHILD SEAT ANCHOR GUIDE, REMOVING AND INSTALLING
- Quantity: 4
Upper Child Seat Anchor
- Quantity: 3
- Welded to the backrest frame
Cover
- For the upper child seat anchor
- Quantity: 3
- Engage in the anchor and press on it until it engages audibly
- Can only be pushed onto the rear seat backrest in one position
- Refer to UPPER CHILD SEAT ANCHOR COVER, REMOVING AND INSTALLING
Rear Seat Backrest
