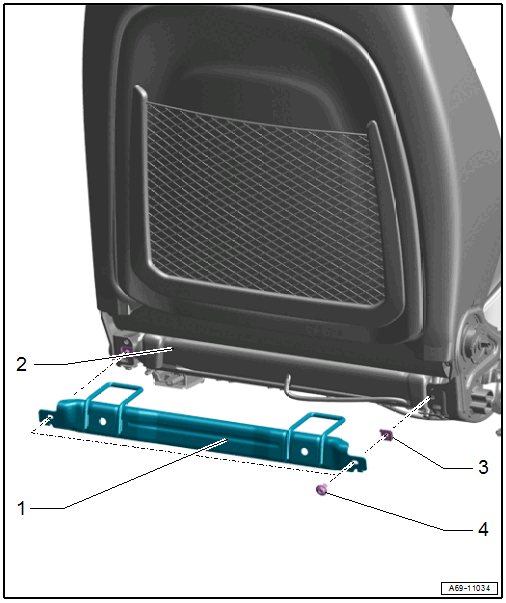

Overview - Front Child Seat Anchors
WARNING: This page is about a different car, the 2023 Audi SQ8, 2023 Audi RS Q8, and 2023 Audi Q8. However, it is still accessible from the selected car via links, so may be relevant.
- Child Seat Anchor
- Front passenger seat only
- Bolted to the seat pan
- Replace damaged or deformed child seat anchor
- Refer to CHILD SEAT ANCHORS, CHECKING AFTER COLLISION
- Refer to FRONT CHILD SEAT ANCHOR, REMOVING AND INSTALLING
- Front Passenger Seat
- Spring Nut
- Replace any damaged or deformed spring nuts
- Attached in the seat pan
- Quantity: 2
- Bolt
- 8 Nm
- Replace after removing
- Quantity: 2
