Front Child Seat Anchor, Removing And Installing: Removing
WARNING: This page is about a different car, the 2023 Audi SQ8, 2023 Audi RS Q8, and 2023 Audi Q8. However, it is still accessible from the selected car via links, so may be relevant.
-- Pay attention to the safety precautions when working with pyrotechnic components. Refer to SAFETY PRECAUTIONS .
-- Remove the front passenger seat. Refer to FRONT SEAT, REMOVING AND INSTALLING .
-- Remove the seat frame trim panel on the tunnel side. Refer to SEAT PAN, DISASSEMBLING AND ASSEMBLING .
-- Remove the seat frame trim panel on the side sill side. Refer to SEAT PAN, DISASSEMBLING AND ASSEMBLING .

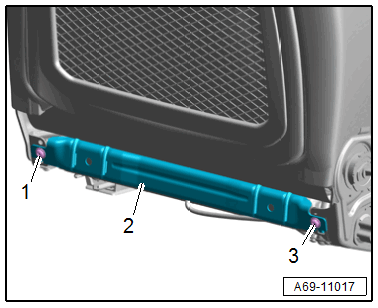

-- Remove the bolts -1 and 3-.
-- Remove the child seat anchor -2- toward the rear from the front seat.
