Overview - Battery Interrupt Igniter

WARNING: This page is about a different car, the 2023 Audi SQ8, 2023 Audi RS Q8, and 2023 Audi Q8. However, it is still accessible from the selected car via links, so may be relevant.

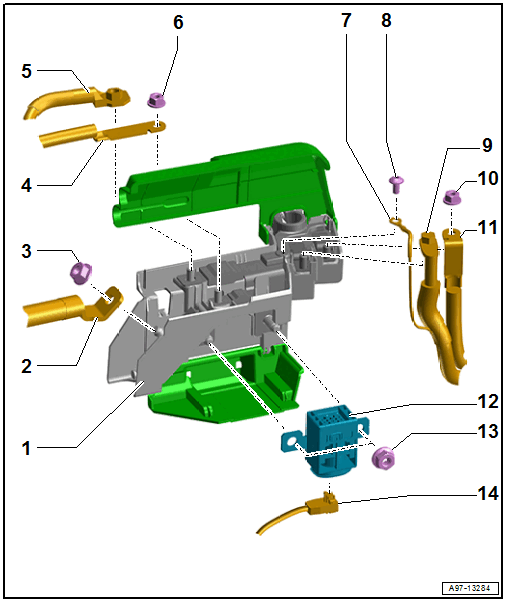

Fig 1: Exploded View Of Battery Interrupt Igniter

Courtesy of AUDI

Main Fuse Panel
- Removing and installing. Refer to RELAY PANELS, FUSE PANELS AND E-BOXES .
Line
- Allocation. Refer to the appropriate Wiring Diagram.
Nut
- Tightening specification. Refer to RELAY PANELS, FUSE PANELS AND E-BOXES .
Line
- Allocation. Refer to the appropriate Wiring Diagram.
Line
- Allocation. Refer to the appropriate Wiring Diagram.
- Tightening specification. Refer to RELAY PANELS, FUSE PANELS AND E-BOXES .
Nut
- Tightening specification. Refer to RELAY PANELS, FUSE PANELS AND E-BOXES .
Line
- Allocation. Refer to the appropriate Wiring Diagram.
Bolt
- Tightening specification. Refer to RELAY PANELS, FUSE PANELS AND E-BOXES .
Line
- Allocation. Refer to the appropriate Wiring Diagram.
- Tightening specification. Refer to RELAY PANELS, FUSE PANELS AND E-BOXES .
Nut
- Tightening specification. Refer to RELAY PANELS, FUSE PANELS AND E-BOXES .
Line
- Allocation. Refer to the appropriate Wiring Diagram.
Battery Interrupt Igniter -N253-
- Refer to BATTERY INTERRUPT IGNITER, REMOVING AND INSTALLING
Nut
- 15 Nm
- Replace after removing
- Quantity: 2
Connector
- For the Battery Interrupt Igniter -N253-
