Battery Interrupt Igniter -N253-, REMOVING AND INSTALLING, 12 VOLT: Removing

WARNING: This page is about a different car, the 2023 Audi SQ8, 2023 Audi RS Q8, and 2023 Audi Q8. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of AUDI

-- Pay attention to the safety precautions when working with pyrotechnic components. Refer to SAFETY PRECAUTIONS .

-- Switch off the ignition and place the ignition key outside of the vehicle and wait 10 seconds before working on the airbag system.

-- Right side: remove the floor mat, release the cover -1- upward in direction of -arrow A- and remove toward the center of the vehicle in direction of -arrow B-.

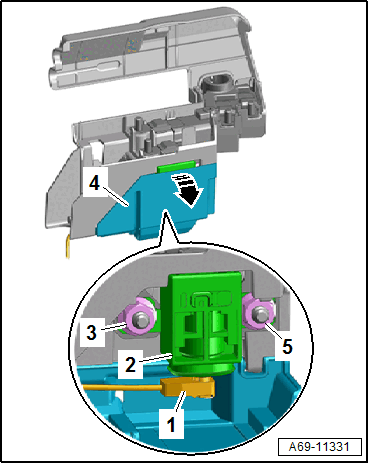

-- Release the catch and open the lid -4- in the direction of -arrow-.

Courtesy of AUDI

-- Remove the nuts -3 and 5-.

CAUTION:

Pyrotechnical components can deploy unintentionally.

Risk of injury.

- Discharge the static electricity: quickly touch the door striker.

-- Remove the Battery Interrupt Igniter -N253-.

-- Disconnect the connector -1- on the ignition -2- to do so release the connector lock with a small flat-head screwdriver.
