Component Location Overview - Airbag Crash Sensors
WARNING: This page is about a different car, the 2023 Audi SQ8, 2023 Audi RS Q8, and 2023 Audi Q8. However, it is still accessible from the selected car via links, so may be relevant.

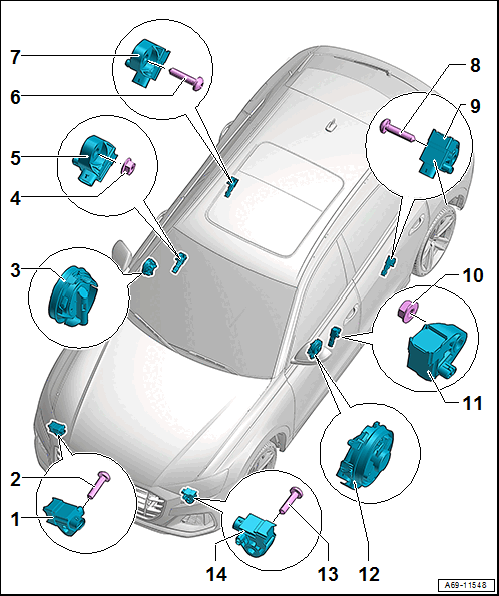

The overview shows a LHD vehicle as an example. For RHD vehicles the layout is a mirror image.
- Passenger Side Front Airbag Crash Sensor -G284-
- Component location: on the right side of the headlamp mount
- Refer to Driver Front Airbag Crash Sensor -G283-, REMOVING AND INSTALLING
- Bolt
- 9 Nm
- Front Passenger Thorax Airbag Crash Sensor -G180-
- Component location: inside the door
- Refer to Driver Thorax Airbag Crash Sensor -G179- / Front Passenger Thorax Airbag Crash Sensor -G180-, REMOVING AND INSTALLING
- Nut
- 9 Nm
- Thorax Airbag Crash Sensor in the Front Passenger Side B-Pillar -G1102-
- Component location: in the B-pillar
- Refer to Thorax Airbag Crash Sensor in Driver Side B-Pillar -G1101- /Thorax Airbag Crash Sensor in Front Passenger Side B-Pillar -G1102-, REMOVING AND INSTALLING
- Bolt
- 9 Nm
- Passenger Side Rear Thorax Airbag Crash Sensor -G257-
- Component location: behind the sill panel strip
- Refer to Driver Side Rear Thorax Airbag Crash Sensor -G256- / Passenger Side Rear Thorax Airbag Crash Sensor -G257-, REMOVING AND INSTALLING
- Bolt
- 9 Nm
- Driver Side Rear Thorax Airbag Crash Sensor -G256-
- Component location: behind the sill panel strip
- Refer to Driver Side Rear Thorax Airbag Crash Sensor -G256- / Passenger Side Rear Thorax Airbag Crash Sensor -G257-, REMOVING AND INSTALLING
- Nut
- 9 Nm
- Thorax Airbag Crash Sensor in the Driver Side B-Pillar -G1101-
- Component location: in the B-pillar
- Refer to Thorax Airbag Crash Sensor in Driver Side B-Pillar -G1101- /Thorax Airbag Crash Sensor in Front Passenger Side B-Pillar -G1102-, REMOVING AND INSTALLING
- Driver Thorax Airbag Crash Sensor -G179-
- Component location: inside the door
- Refer to Driver Thorax Airbag Crash Sensor -G179- / Front Passenger Thorax Airbag Crash Sensor -G180-, REMOVING AND INSTALLING
- Bolt
- 9 Nm
- Driver Front Airbag Crash Sensor -G283-
- Component location: on the left side of the headlamp mount
- Refer to Driver Front Airbag Crash Sensor -G283-, REMOVING AND INSTALLING
