Wire Routing -TV1-, REMOVING AND INSTALLING, Q5 TFSIE: Removing
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
-- Disconnect the ground cable from the battery when the ignition is switched off. Refer to Battery -A-, DISCONNECTING AND CONNECTING, 0K0 AND 0K3 .
-- Remove the rear luggage compartment floor. Refer to LUGGAGE COMPARTMENT FLOOR, REMOVING AND INSTALLING .

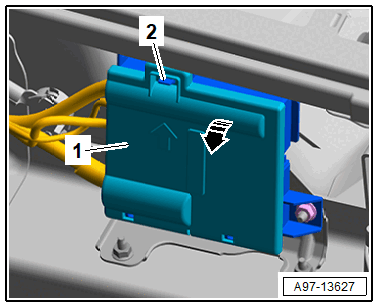

-- Release the catch -2- and open the cover -1- in the direction of -arrow-.

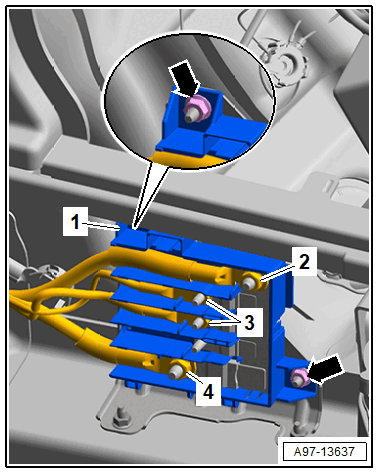

-- Remove the nuts -2, 3, and 4- and free up the wires.
-- Remove the nuts -arrows-.
-- Remove the wire junction -1-.
