Terminal 40 Wire Junction 2 -TV67-, REMOVING AND INSTALLING, 48 VOLT SYSTEMS: Removing
WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.
-- De-energize the 48V system. Refer to 48V SYSTEM, DE-ENERGIZING .
-- Remove the front luggage compartment floor. Refer to LUGGAGE COMPARTMENT FLOOR, REMOVING AND INSTALLING .

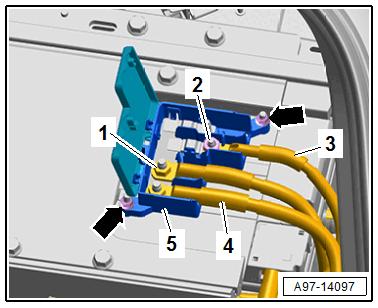

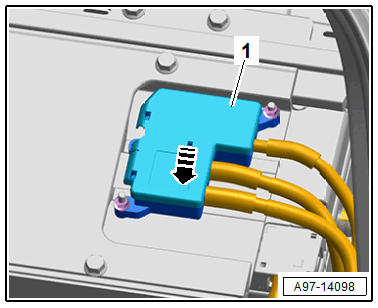

-- Release the latch in the direction of -arrow- and open the cover -1-.
-- Remove the wires -1 and 4-.
-- Remove the nut -3- and free up the wire -3-.
-- Remove the nuts -arrows-.
-- Remove the wire junction -5-.
