Terminal 40 Wire Junction -TV66-, REMOVING AND INSTALLING: Removing

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2024 Audi SQ5, 2024 Audi Q5 e, 2024 Audi Q5, 2023 Audi SQ5, and 2023 Audi Q5 e. However, it is still accessible from the selected car via links, so may be relevant.

-- De-energize the 48V system. Refer to 48V SYSTEM, DE-ENERGIZING .

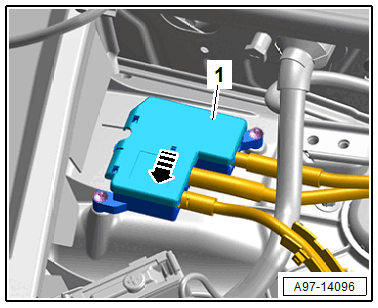

-- Release the latch in the direction of -arrow- and open the cover -1-.

GWWA97-14096Courtesy of AUDI

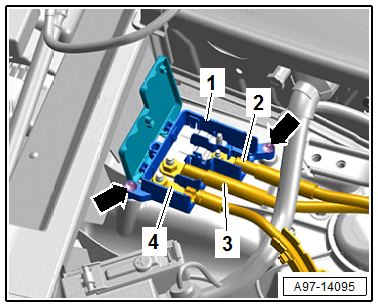

-- Remove the wires -2, 3 and 4-.

GWWA97-14095Courtesy of AUDI

-- Remove the bolts -arrows-.

-- Remove the wire junction -1-.
